Default Minor ABS problem

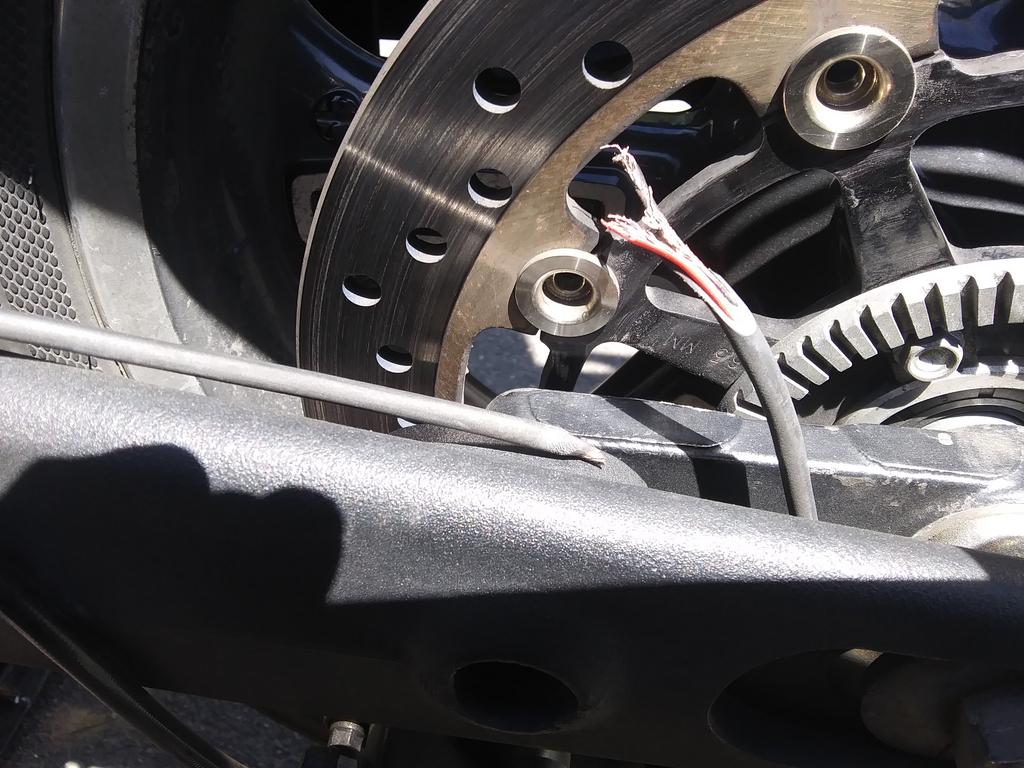

My ABS dash light has been on(as well as no ABS function) for a week and didn't reset with a cleaning of the sensors and rings. Yesterday, I decided to investigate further....didn't take long to find the problem
I can't be 100% sure how this happened but it sure as hell looks like a slice by the brake disk...

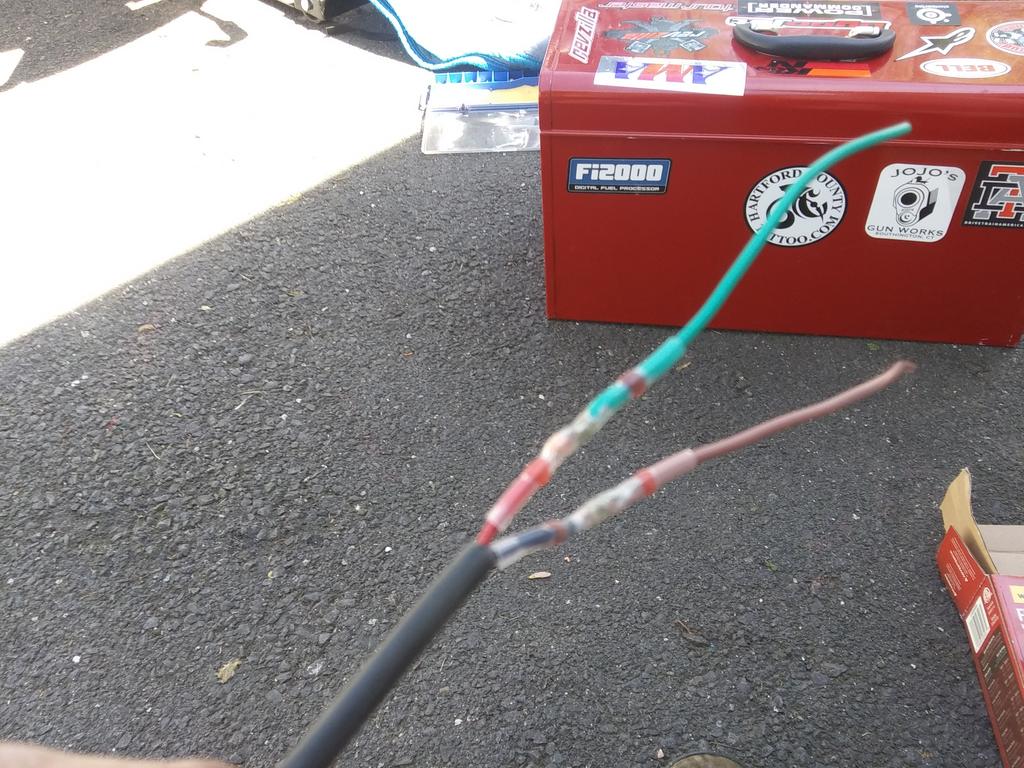

Before I ran out and dropped $100+ on a new cable and sensor I wanted to try to fix and improve this. I grabbed my pack of Sopoby Heat Shrink Butt Connectors, some wide heat-shink, a length of same gauge wires and a few small zip-ties. I measured enough wire to move the route outside the swingarm to follow the brake line where it would be out of harms way. Then I got to work splicing in.
(**These Sopoby connectors are a must have if you're doing any electrical work....they are amazing)

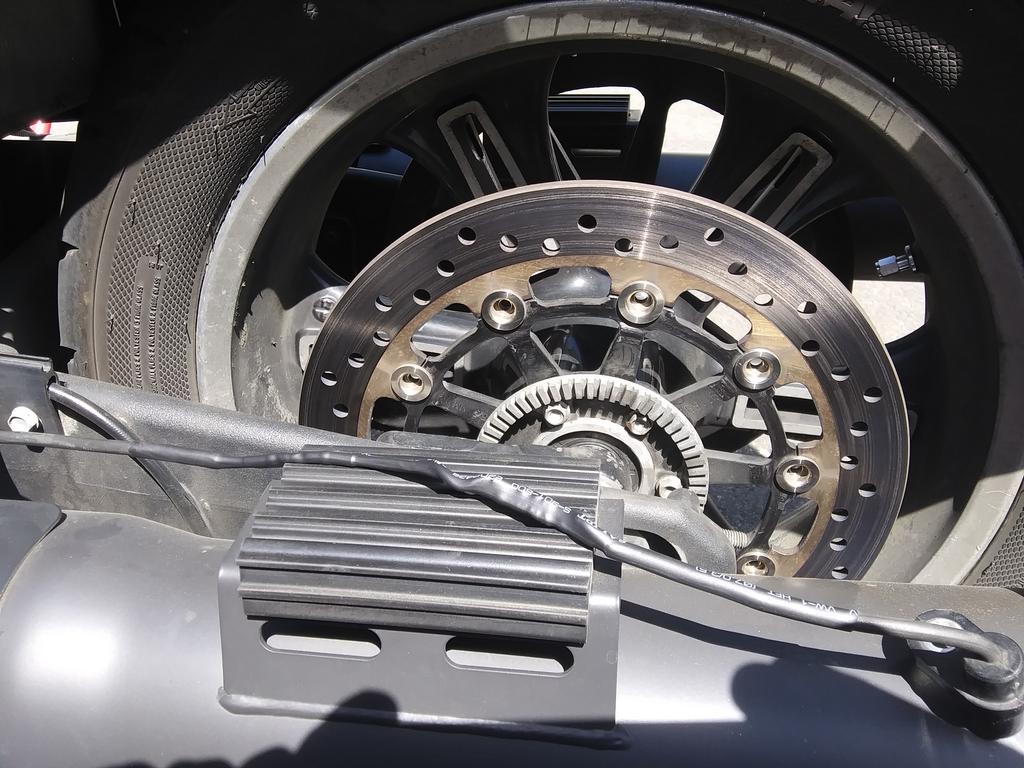

I heat-shrunk over the new splices and then routed the wire to follow the brake line to the outside of the swingarm, away from any moving parts. I did a 100 mile ride after getting this done, all seems good with the ABS working normally.

PaiN's Rides on YouTube

"Living life is a great idea, but riding a motorcycle actually gives you a tool to do it..." -me
2013 Sunset Red Cross Country
Vic Tri-Oval Mufflers, Lloydz VM1-DR cams, AF, PC-V @112hp/113tq
Corbin Dual Tour seat, Klock Werks Klip Hanger bars, Vicwapz
Avon Contour grips, Kuryakyn Kinetic boards and rear SwingWings
Victory black LED headlight and Touring Pack, Madstad 9" windshield
PaiN is offline
Sponsored Links
Advertisement

post #2 of 7 (permalink) Old 05-19-2019, 06:56 AM
Senior Member

Join Date: May 2018
Location: Indianapolis
Posts: 930
Default

I posted last year the exact same issue... Same damage.

No idea how it happened either but I totally rerouted the wire far from the brake disk.


visionjohnny likes this.

Red 2012 Cross Country Tour
Polk 522, Nautilus air horn, 17" rubber antenna, knob saddlebag release, black tri-ovals, sabertooth saddlebag lights, Madstad windshield, many parts chrome to black.

Last edited by IndyVictory; 05-19-2019 at 07:00 AM.
IndyVictory is offline
post #3 of 7 (permalink) Old 05-19-2019, 08:00 AM Thread Starter
Senior Member

PaiN's Avatar

Join Date: May 2014
Location: CT, USA
Posts: 3,941
Garage
Default

Quote:
Originally Posted by IndyVictory View Post
I posted last year the exact same issue... Same damage.

No idea how it happened either but I totally rerouted the wire far from the brake disk.

Attachment 243607

I'm sure we can agree that the rear ABS sensor wire is not routed well.
visionjohnny likes this.

PaiN's Rides on YouTube

"Living life is a great idea, but riding a motorcycle actually gives you a tool to do it..." -me
2013 Sunset Red Cross Country
Vic Tri-Oval Mufflers, Lloydz VM1-DR cams, AF, PC-V @112hp/113tq
Corbin Dual Tour seat, Klock Werks Klip Hanger bars, Vicwapz
Avon Contour grips, Kuryakyn Kinetic boards and rear SwingWings
Victory black LED headlight and Touring Pack, Madstad 9" windshield
PaiN is offline
Sponsored Links
Advertisement

post #4 of 7 (permalink) Old 05-19-2019, 08:08 AM
Lifetime Premium

BBob's Avatar

Join Date: Aug 2010
Location: NW AZ
Posts: 12,609
Garage
BBob is online now
post #5 of 7 (permalink) Old 05-19-2019, 08:19 AM
Senior Member

Join Date: May 2018
Location: Indianapolis
Posts: 930
Default

Did you recently replace your rear tire? That's when it happened to me so I thought I made some mistake.

My new routing seems to work fine with no sign of trouble. It does put it closer to exhaust but no worries about the brake disc.
IndyVictory is offline
post #6 of 7 (permalink) Old 05-19-2019, 09:50 AM Thread Starter
Senior Member

PaiN's Avatar

Join Date: May 2014
Location: CT, USA
Posts: 3,941
Garage
Default

I haven't had the rear off in a while and I don't think it happened from the rear axle nut incident(came loose) either. It happened suddenly on ride a week ago.

PaiN's Rides on YouTube

"Living life is a great idea, but riding a motorcycle actually gives you a tool to do it..." -me
2013 Sunset Red Cross Country
Vic Tri-Oval Mufflers, Lloydz VM1-DR cams, AF, PC-V @112hp/113tq
Corbin Dual Tour seat, Klock Werks Klip Hanger bars, Vicwapz
Avon Contour grips, Kuryakyn Kinetic boards and rear SwingWings
Victory black LED headlight and Touring Pack, Madstad 9" windshield
PaiN is offline
post #7 of 7 (permalink) Old 05-23-2019, 06:29 PM
Senior Member

Join Date: May 2018
Location: Indianapolis
Posts: 930
Default

Hmm okay so that takes the blame off me I feel better now. Lol
CanuckRob likes this.
IndyVictory is offline
