Exclamation Harbor Freight Wheel Chock Warning

DO NOT use a Harbor Freight wheel chock with your crossroads. I had to learn this the hard way and there is no sense in the rest of you learning my lesson. The front fender is low enough that when you roll the bike into the chock the fender points will get caught in the chock and bend them into the tire.

ATGATT because walking away in disgust is better than riding away in an ambulance.

Never get to busy making a living that you forget to make a life.

Larry

2011 Pearl White Vision 88,000 smiles
lstayner is offline
Sponsored Links
Advertisement

post #2 of 9 (permalink) Old 03-12-2011, 09:27 PM
Senior Member

dirtdobber's Avatar

Join Date: Oct 2010
Location: Sand Mountain
Posts: 528
Garage
Default

Thanks for the heads up.
Maybe it will help someone down the road.
I make my own, for that very reason. My vtx has a full wrap around front fender, nothing works with it so I built my own.

2011 Cross Country
If everything fails read the instructions
dirtdobber is offline
post #3 of 9 (permalink) Old 03-13-2011, 10:42 AM
Senior Member

Join Date: Jul 2010
Posts: 154
Default

Really-again thanks for the update on the chocks. I have Condor Chocks which I think are similar in design. Would you have a idea how to modify yur chock, like need to be wider, shorter?? Would be a great help. I would hate to go back to just a wheel chock, but then again I don't want to damage the fender.

2008 Vision Black gone 2005 TC- Sold
1963 Triumph Bonneville,not sure on color-be awhile
1983 XS 650 Custom Midnight Gold
2007 Ural Patrol Black-Sold
2011 Cross Country White and Silver
2012 Cross Country Red and Silver--Hers
A bunch of other bikes over the years, mostly all good

Life is short, eat dessert first, simple enough.

N/E Georgia and my garage
Shuffles is offline
Sponsored Links
Advertisement

post #4 of 9 (permalink) Old 03-13-2011, 01:52 PM
Senior Member

ammo_umb's Avatar

Join Date: Sep 2010
Location: Utah
Posts: 2,699
Default

Sit your chock it the loaded position and measure the front height, rear height and width. Stand your bike upright and take the same measurements. You should be able to see right away if there's any chance of contact between the chock and the bike. If any part of the chock is going to hit or come close to hitting any part of your front wheel or fender you'll need to modify that portion of the chock. You should be able to cut the chock with a metal cutting disk on a die cutter or a drill. Clean up any rough edges with a grinder or file, spray on some paint and you should be good.

Retired USAF, IYAAYAS!

2008 V-Star 1100 Custom Bobber project

2011 Crimson XR with Forged Highway Bars / Hard Bags / Passenger Backrest, Ness parts including Smooth Layback Plate Frame/Mount / Rad 3 Mirror / deep cut grips / drivers floorboards /shifter peg / brake peg / passenger pegs. Witchdoctor black rack, Lloydz filter / timing wheel / VFC III, 7Jurock windshield, Drag Specialties seat.
ammo_umb is offline
post #5 of 9 (permalink) Old 03-13-2011, 04:40 PM
Senior Member

dirtdobber's Avatar

Join Date: Oct 2010
Location: Sand Mountain
Posts: 528
Garage
Default

My chock was copied from the condor. The only difference is I raised the angle of the tire ramps. This raised the tire and fender away from the tire ramps.
You need to realize the tire ramps are designed to fit different size tires, height and width. This would make it difficult to get a accurate measurement. So the tire can be raised or lowered depending on the tire size. It happens that both bikes, XC and the bike I made the chock for uses the same front tire size. You can also adjust the ramp forwards or backwards this can allow the rear ramp to be lower. Just remove the rod with locking pin and move the ramp forward to the next hole. This will lower the rear part of the ramp. This maybe all you will need to do. I added extra holes for more adjustments. Once you move the ramp make sure there is enough pressure to hold the bike on the forward stationary post and the ramp will more forward enough to lock.

Just a thought

dd

2011 Cross Country
If everything fails read the instructions
dirtdobber is offline
post #6 of 9 (permalink) Old 03-13-2011, 08:01 PM
Senior Member

Join Date: Jul 2010
Posts: 154
Default

Thanks Ammo, I will check and modify this week. It is always best to do things like that before you need to trailer yur bike for whatever reason.

2008 Vision Black gone 2005 TC- Sold
1963 Triumph Bonneville,not sure on color-be awhile
1983 XS 650 Custom Midnight Gold
2007 Ural Patrol Black-Sold
2011 Cross Country White and Silver
2012 Cross Country Red and Silver--Hers
A bunch of other bikes over the years, mostly all good

Life is short, eat dessert first, simple enough.

N/E Georgia and my garage
Shuffles is offline
post #7 of 9 (permalink) Old 03-13-2011, 09:57 PM
Senior Member

dirtdobber's Avatar

Join Date: Oct 2010
Location: Sand Mountain
Posts: 528
Garage
Default

When you put the front tire in the raised position does it not raise upward? This is cause by the off set of the chock, it is not centered. Measure the distance from the pin to the end front and rear and you will have 2 different dimensions. The off set is what causes the the lock to work by pressure form the rear ramp when it is in the froward position.
Least wise the condor I copied did.

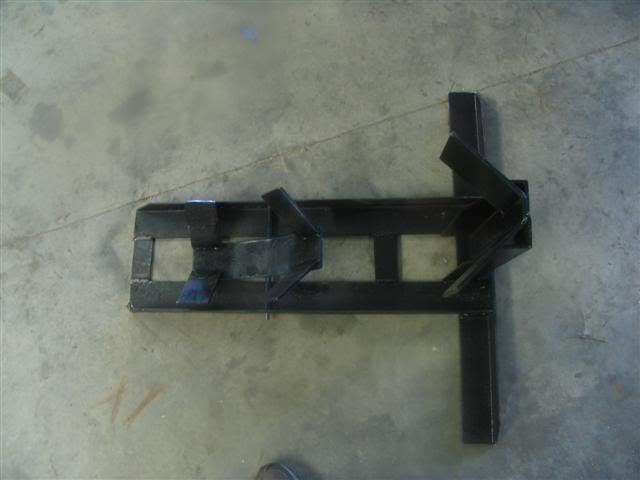

Mine



Cost was about $20

2011 Cross Country
If everything fails read the instructions

Last edited by dirtdobber; 03-13-2011 at 09:59 PM.
dirtdobber is offline
post #8 of 9 (permalink) Old 03-14-2011, 11:11 AM
Senior Member

warr110r's Avatar

Join Date: Oct 2010
Location: Vegas Baby!!
Posts: 169
Garage
Default

Thanks for the info!! I will be getting some wheel chocks soon and did not even think to measure things first. Now I will make sure I do.

Hey DD those are some good looking chocks. What kind of welder do you use?

2011 Blue Cross Country
Arlen Ness RAD III Mirrors
Bassani 4" Mufflers
Stablemate:
2002 Yamaha Warrior
110 C.I. Patrick Racing Kit
Waay too many other Mods
warr110r is offline
post #9 of 9 (permalink) Old 03-14-2011, 02:56 PM
Senior Member

dirtdobber's Avatar

Join Date: Oct 2010
Location: Sand Mountain
Posts: 528
Garage
Default

I have a Hobart beta mig

2011 Cross Country
If everything fails read the instructions
dirtdobber is offline
