Default Kuryakyn Skinni Mini Headlight Ring

Has anyone added a Kuryakyn Skinni Mini White Light to their Cross
Country headlight ring. Would like feedback about install. I have factory HID low beam and need to find best place to splice hot wire. Thanks.

2011-12-13 Pres. Abilene Roadriders
His: 2015 Victory Cross Country Tour
Well Equiped
Hers: 2015 Gunner
Nicely Equiped
sand man is offline
Sponsored Links
Advertisement

post #2 of 6 (permalink) Old 06-17-2014, 11:29 AM
Senior Member

visionjohnny's Avatar

Join Date: Sep 2010
Location: minnesota
Posts: 12,946
Default

never here much bad about Kuryakyn go to there web site and you might find a pdf file on how to install it

2008 Vision
Mpls, MN.

Please add your state and model of bike you have. Click user CP @ top of page and then far left click edit signature. Thanks
visionjohnny is offline
post #3 of 6 (permalink) Old 06-17-2014, 02:11 PM
Senior Member

joelis's Avatar

Join Date: Jun 2013
Location: Goodyear AZ
Posts: 212
Garage
Default

Just a note about this light ring - for legal reasons it is intended to be on only when the bike is PARKED. So, if wired to factory Kury specs, it will go out when the bike is in gear. (pointless IMO). So you may not want to follow their wiring specs.

.

2013 AG XC
- Chrome Tri Ovals Stage 1
- Madstad Shield
- VictoryHID beams
- Kuryakyn Dually Hwy Pegs
- MCC Custom Fork Mount Deflectors
- Chrome Locking Laydown Plate Cover
- Lock & Ride Chrome Passenger Backrest
- Grasshopper Driver Backrest
- Vic Tracker Grips
- more to come...
joelis is offline
Sponsored Links
Advertisement

post #4 of 6 (permalink) Old 06-17-2014, 10:33 PM
Senior Member

MrXC2014's Avatar

Join Date: May 2014
Location: Madison, AL
Posts: 372
Default

Quote:
Originally Posted by sand man View Post
Has anyone added a Kuryakyn Skinni Mini White Light to their Cross
Country headlight ring. Would like feedback about install. I have factory HID low beam and need to find best place to splice hot wire. Thanks.
Sand Man, I just completed this install this evening and I have a 6K HID LOW/HI setup. I don't have my cable to my phone our I would post a pic. IMO it doesn't look bright as the HID' and you don't see them. I purchased two kits so I may go in and add the other one. I tap off the Low beam bike wiring which is Pink/Yellow (+) BLK (-).

If you haven't started yet try and place the led strips close to the edge of the headlight as possible. I had mines sort of in the middle. I hope that helps.

2014 Victory CC, Two-Tone, VM1-HPT-DR, PC5, ATS+4, Llyodz HI-FLOW A/F, 1/4 Turn Throttle Ring, Tuned by Kyle Crandall of KMC PowerSports, Flashed ECM, 121hp 113tq
Suede Supersteel & Black, Madison, AL
MrXC2014 is offline
post #5 of 6 (permalink) Old 06-18-2014, 08:31 PM
Senior Member

MrXC2014's Avatar

Join Date: May 2014
Location: Madison, AL
Posts: 372
Default

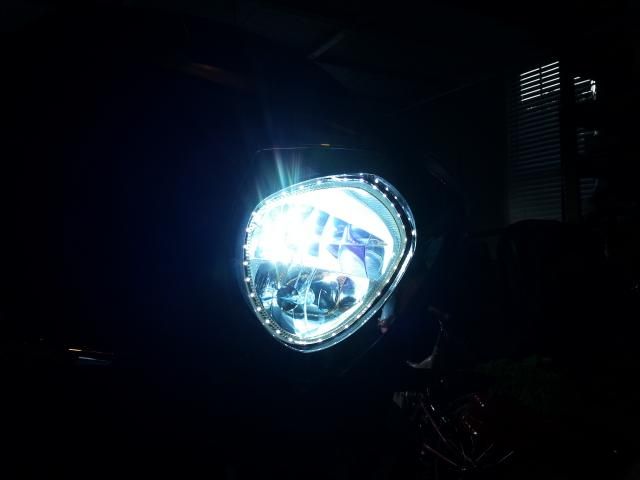

Sand Man, I readjusted the light strip by placing it closer to the edge on the glass itself, I also had to change the orientation of the light strip because I had it backwards. Also when looking at the pic on the instructions just insure the flat edge of the led's are facing out, as in front of bike. See pic this is after making the correction.

2014 Victory CC, Two-Tone, VM1-HPT-DR, PC5, ATS+4, Llyodz HI-FLOW A/F, 1/4 Turn Throttle Ring, Tuned by Kyle Crandall of KMC PowerSports, Flashed ECM, 121hp 113tq
Suede Supersteel & Black, Madison, AL
MrXC2014 is offline
post #6 of 6 (permalink) Old 06-19-2014, 04:33 AM
Lifetime Premium

BBob's Avatar

Join Date: Aug 2010
Location: NW AZ
Posts: 12,765
Garage
Default

This mod looks pretty good. It reminds me of the new cars coming out with the LED running lights in the main headlight.
