Default PCV and O2 sensors

Every time I've run my bike with the O2 sensors unplugged(either with or without a fuel controller) I get engine popping between shifts.
The Power Commander install instructions say to disconnect the O2 sensors. So that's what I did, but sure enough I'm getting the engine popping again.
Is there any harm in running with the O2 sensors connected? Does anyone know the purpose for disconnecting the O2 sensors?
thanks

PaiN's Rides on YouTube

"Living life is a great idea, but riding a motorcycle actually gives you a tool to do it..." -me
2013 Sunset Red Cross Country
Vic Tri-Oval Mufflers, Lloydz VM1-DR cams, AF, PC-V @112hp/113tq
Corbin Dual Tour seat, Klock Werks Klip Hanger bars, Vicwapz
Avon Contour grips, Kuryakyn Kinetic boards and rear SwingWings
Victory black LED headlight and Touring Pack, Madstad 9" windshield
PaiN is offline
Sponsored Links
Advertisement

post #2 of 12 (permalink) Old 04-17-2015, 10:19 PM
Senior Member

visionjohnny's Avatar

Join Date: Sep 2010
Location: minnesota
Posts: 12,947
Default

PCV will not work correctly. Popping is from bad map

2008 Vision
Mpls, MN.

Please add your state and model of bike you have. Click user CP @ top of page and then far left click edit signature. Thanks
visionjohnny is offline
post #3 of 12 (permalink) Old 04-17-2015, 10:26 PM
Premium Member

dtmmil's Avatar

Join Date: Jul 2012
Location: Hawley MN
Posts: 4,178
Default

where/when is it popping? settings can be adjusted in the pcv, leave o2s unhooked

currently bikeless

2012 Cross Country(Imp blue)
de-badged,(self tinted) Klockwerx flare, passenger backrest, passenger touring floorboards, VictoryHID kit, Miller Mufflers short baffles,Lloyds air filter(from witchdr.)Lloyds timing wheel(6*), adjustable drop link, cut seat, removed cats, PCV w/at.
1978(2009) Honda cb750 chopper
Hawley MN(sold)
dtmmil is offline
Sponsored Links
Advertisement

post #4 of 12 (permalink) Old 04-17-2015, 10:31 PM
Lifetime Premium

BP6666VR's Avatar

Join Date: Dec 2013
Location: World Citizen = A peaceful and peacemaking individual, both in daily life and contacts with others
Posts: 5,951
Default

I think if a PVC is connected the O2 has no effect anymore, so the bike is running of the map only, the O2 are not connected to that map so even if you would keep them in your exhaust it would not have any effect

But surly others have a better explanation.

JACKPOT 2013 orange MADNESS :-) *HOH-VM1-DR*TachoMeter*PowCom-5*AutoTune*ATS*TorTube & (IAC) & nitro*Swept exhaust*LYNDALL & EBC brakes Front & Rear*Stainless Beads*Fwd Contr 4" *2 x Bad Boy Air Horn*Seven Color Lizard*NGK plugs*Blue Spark Plug Wir*Victory Oil*KN Oil filter*Oil Analysis*Clutch Cover*Kickst Repl Rubb*Invisble-A-Key*L.E.D. Batt. Gauge*Pulsating Brake Light*VictoryHID*Lice Bracket OVAL*BoltKit-Chrome*

Cross Country Tour 2014 [B]
BP6666VR is offline
post #5 of 12 (permalink) Old 04-18-2015, 01:36 AM
Junior Member

Join Date: Jan 2015
Location: South Jersey USA
Posts: 19
Default

How did you map the PCV? A dyno tune should have cured poping. Dynojet makes a closed loop controller that assists PCV, check Web Site, but it requires you install wide band O2 sensors.
Flintlock is offline
post #6 of 12 (permalink) Old 04-18-2015, 03:56 AM
Lifetime Premium

half_crazy's Avatar

Join Date: Sep 2011
Location: Southern Maryland
Posts: 4,837
Default

Figure out at what rpm the popping occurs on decel.
In the power commander software, in the 0% throttle column, put a value in that cell.

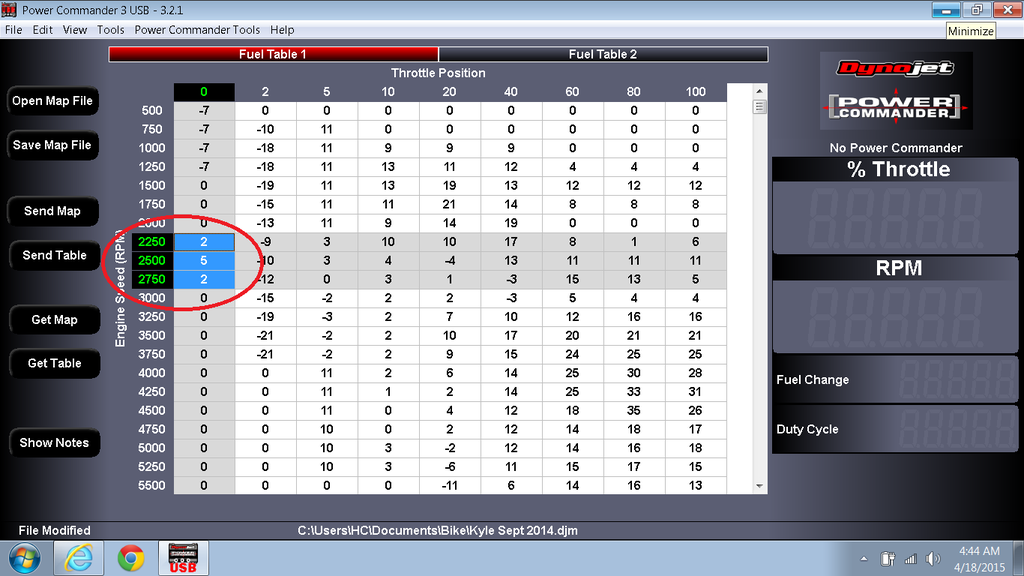

The 0% throttle column should have all zeros above idle speeds. If it is popping at 2500 rpm, put a value in that cell and the ones around it in the 0% column... like this...



Start with low values 2-5-2. If it still pops use 5-10-5 etc. If you go past 20 and it still pops, put -12 (minus twelve) in those cells.

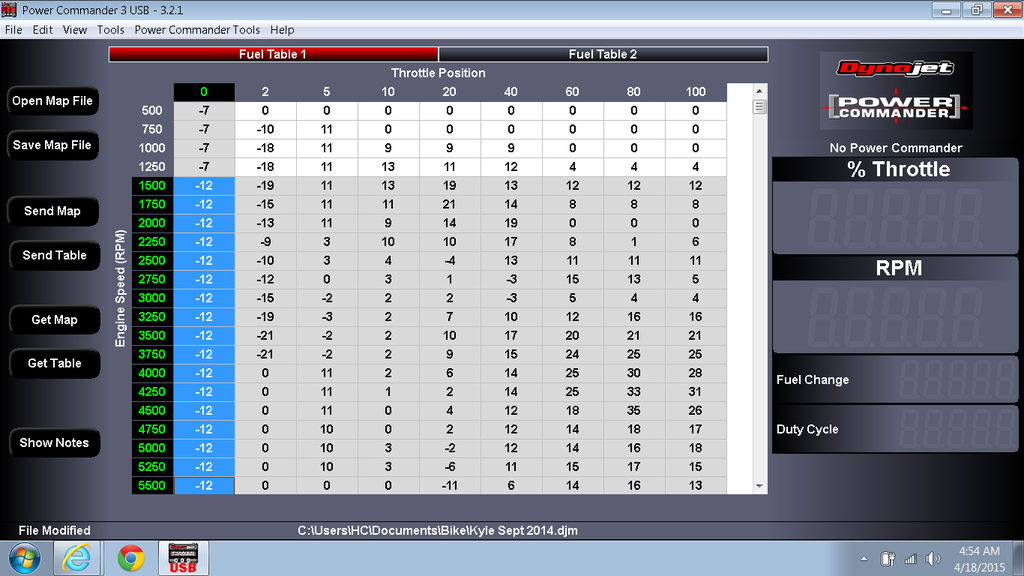

If it is popping all over and on shifts, put -12 in all the 0% cells above 1500 rpm.



It probably would be a good idea to reset the throttle position in the Power Commander too.

2006 Victory Kingpin
Lloydz 116" Stroker/Big Bore, .495 Cams, Torque Tubes Airbox,
RPW Thor Pipe, Lloydz ECU Flash, PC-III, PTS (-2), Rivera
Primo Clutch Spring, 31 Tooth Pulley w/Buell Belt.

Last edited by half_crazy; 04-18-2015 at 03:59 AM.
half_crazy is offline
post #7 of 12 (permalink) Old 04-18-2015, 04:11 AM
Lifetime Premium

LILMAGS500's Avatar

Join Date: Apr 2013
Location: Peoples Republic of Massachusetts
Posts: 9,684
Garage
Default

Could be an exhaust leak , check all connections and make sure your flange nuts at the head pipes are tight . Should be 12 ft lbs . Pull the 02's right out and put 18mm bung plugs in their place . I got mine off ebay for less then 10.00 shipped.

2014 Cross Country
2014 XC , Lloyds A/F , Timing Wheel +4 , PCV , Miller Mufflers , 1/4 Turn Throttle Ring , Dyno Tuned by KMC Powersports 98HP 113 TQ
LILMAGS500 is offline
post #8 of 12 (permalink) Old 04-18-2015, 05:27 AM Thread Starter
Senior Member

PaiN's Avatar

Join Date: May 2014
Location: CT, USA
Posts: 4,018
Garage
Default

Quote:
Originally Posted by LILMAGS500 View Post
Could be an exhaust leak , check all connections and make sure your flange nuts at the head pipes are tight.
Quote:
Originally Posted by dtmmil View Post
where/when is it popping? settings can be adjusted in the pcv, leave o2s unhooked
I don't believe there is a leak, I know everything is tight. Plus it only started after the change over to the PCV
I've only had and hour on the bike since the install and the mapping seems excellent, other than the new popping. I can't be very specific, I'll have to pay close attention this weekend as to where its happening. But I notice the pop most when I up-shift from 1st-2nd and 2nd-3rd in my "typical riding style" where I shift around 2800-3000rpms

As I said in the OP, I used to get popping with the O2 sensors disconnected. Now that I've slept on it I realize, back then it was much more severe and a LOUD backfire(probably scared the shit out of a few cagers in traffic ). The popping I'm getting now with the PCV is very minor by comparison. Since the PCV cuts off the O2 sensors I'm sure this can be taken care of with a tweak to the map.....which was the answer I was looking for.

PaiN's Rides on YouTube

"Living life is a great idea, but riding a motorcycle actually gives you a tool to do it..." -me
2013 Sunset Red Cross Country
Vic Tri-Oval Mufflers, Lloydz VM1-DR cams, AF, PC-V @112hp/113tq
Corbin Dual Tour seat, Klock Werks Klip Hanger bars, Vicwapz
Avon Contour grips, Kuryakyn Kinetic boards and rear SwingWings
Victory black LED headlight and Touring Pack, Madstad 9" windshield
PaiN is offline
post #9 of 12 (permalink) Old 04-18-2015, 05:36 AM
Lifetime Premium

half_crazy's Avatar

Join Date: Sep 2011
Location: Southern Maryland
Posts: 4,837
Default

You decided not to have Kyle run the bike with the Cobra on it then, since you already installed the PC-V?

2006 Victory Kingpin
Lloydz 116" Stroker/Big Bore, .495 Cams, Torque Tubes Airbox,
RPW Thor Pipe, Lloydz ECU Flash, PC-III, PTS (-2), Rivera
Primo Clutch Spring, 31 Tooth Pulley w/Buell Belt.
half_crazy is offline
post #10 of 12 (permalink) Old 04-18-2015, 05:41 AM
Lifetime Premium

GatorJoe's Avatar

Join Date: Oct 2012
Location: Lake City, FL
Posts: 1,018
Garage
Thumbs up

Quote:
Originally Posted by LILMAGS500 View Post
Could be an exhaust leak , check all connections and make sure your flange nuts at the head pipes are tight . Should be 12 ft lbs . Pull the 02's right out and put 18mm bung plugs in their place . I got mine off ebay for less then 10.00 shipped.
+1 Good Post .. Definitely Check for that First ..

2017 Indian Chieftain Dark Horse/2005 Dyna Super Glide
GatorJoe is offline
