Default 2012 Hammer S Dyno

I had a semi local shop run the Hammer on the dyno today to get a baseline. 100% stock with 1370 miles when it went on the dyno. It made 87 HP and 106 TQ pulling in 5th gear to the rev limiter at 5K.

2014 X Country - Havasu Red 109 HP / 112 TQ Dyno Graph

2012 Hammer S 94 HP / 109 TQ (Sold) Dyno Graph
2006 Honda CBR600RR (Sold)
Cosmosgoat is offline
Sponsored Links
Advertisement

post #2 of 29 (permalink) Old 09-18-2012, 06:55 PM
Lifetime Premium

kevinx's Avatar

Join Date: Dec 2009
Location: At Southern Motorworx. High Springs Fl
Posts: 2,646
Default


I'm not an asshole...I just type that way
Check us out at Southern Motorworx on FaceBook
https://www.facebook.com/home.php
http://www.southernmotorworx.com/index.html
kevinx is offline
post #3 of 29 (permalink) Old 09-18-2012, 11:11 PM
Senior Member

Rebel Biker's Avatar

Join Date: Aug 2012
Location: West Fork, Arkansas
Posts: 1,533
Garage
Default

Quote:
Originally Posted by Cosmosgoat View Post
I had a semi local shop run the Hammer on the dyno today to get a baseline. 100% stock with 1370 miles when it went on the dyno. It made 87 HP and 106 TQ pulling in 5th gear to the rev limiter at 5K.
That seems low for the 106. I thought HP was supposed to have high 90s?

https://www.youtube.com/watch?v=KOZw...ature=youtu.be

2014 Victory Cross Country Tour - Two Tone Sonic Blue and Silver

PCV 6,500 rev limit, Lloydz VM1-DR Cams, Lloydz Hi Flow Filter, Atom Bomb exhaust, Lloydz ATS +4, Lloydz 1/4 Throttle. 111 HP / 116 TQ
2012 Victory Kingpin - Traded in on XCT

2007 Honda Shadow Aero 750 - Traded in on KP
Rebel Biker is offline
Sponsored Links
Advertisement

post #4 of 29 (permalink) Old 09-19-2012, 05:08 AM
Lifetime Premium

half_crazy's Avatar

Join Date: Sep 2011
Location: Southern Maryland
Posts: 4,861
Default

Quote:
Originally Posted by Rebel Biker View Post
That seems low for the 106. I thought HP was supposed to have high 90s?
Ahem...

The numbers that Victory 'claims' are measured at the crankshaft, before all the losses through the driveline... and after all, it's a 'claim'. 97 sounds a lot better than 82 in advertising, and technically it's not a lie...

Rear wheel power is usually someplace between 80-83 HP, so he did good. The questions are: was that uncorrected, STD, SAE, what was the smoothing set to, and what kind of dyno was it? Unless you see the graph, there is no way to know how these numbers compare to others... and all dynos read a tad different and there can be spikes that give a false peak number.

For example:

If this was two different bikes. Both owners could truthfully say "I make 125 horsepower", but that wouldn't tell the whole story...


2006 Victory Kingpin
Lloydz 116" Stroker/Big Bore, .495 Cams, Torque Tubes Airbox,
RPW Thor Pipe, Lloydz ECU Flash, PC-III, PTS (-2), Rivera
Primo Clutch Spring, 31 Tooth Pulley w/Buell Belt.

Last edited by half_crazy; 09-19-2012 at 05:30 AM.
half_crazy is online now
post #5 of 29 (permalink) Old 09-19-2012, 06:26 AM
Senior Member

Rebel Biker's Avatar

Join Date: Aug 2012
Location: West Fork, Arkansas
Posts: 1,533
Garage
Default

Okay, that all makes sense, though I feel robbed. I guess when HD, Honda and everybody else talks about their HP, it's rated the same way?

https://www.youtube.com/watch?v=KOZw...ature=youtu.be

2014 Victory Cross Country Tour - Two Tone Sonic Blue and Silver

PCV 6,500 rev limit, Lloydz VM1-DR Cams, Lloydz Hi Flow Filter, Atom Bomb exhaust, Lloydz ATS +4, Lloydz 1/4 Throttle. 111 HP / 116 TQ
2012 Victory Kingpin - Traded in on XCT

2007 Honda Shadow Aero 750 - Traded in on KP
Rebel Biker is offline
post #6 of 29 (permalink) Old 09-19-2012, 07:08 AM
Member

wrightek's Avatar

Join Date: Aug 2012
Location: Minneapolis, MN
Posts: 54
Default

Quote:
Originally Posted by Rebel Biker View Post
Okay, that all makes sense, though I feel robbed. I guess when HD, Honda and everybody else talks about their HP, it's rated the same way?
Yup

2012 Kingpin
Thor Exhaust, PC-V + AT, K&N, HID Headlight, Viking Saddle Bags, Grasshopper Sissy Bar
wrightek is offline
post #7 of 29 (permalink) Old 09-19-2012, 07:27 AM
Lifetime Premium

half_crazy's Avatar

Join Date: Sep 2011
Location: Southern Maryland
Posts: 4,861
Default

Quote:
Originally Posted by Rebel Biker View Post
Okay, that all makes sense, though I feel robbed. I guess when HD, Honda and everybody else talks about their HP, it's rated the same way?
Yeah, like when BMW claims their K1600GT makes 160 HP... Most magazine tests show less than 130 at the rear wheel.

2006 Victory Kingpin
Lloydz 116" Stroker/Big Bore, .495 Cams, Torque Tubes Airbox,
RPW Thor Pipe, Lloydz ECU Flash, PC-III, PTS (-2), Rivera
Primo Clutch Spring, 31 Tooth Pulley w/Buell Belt.
half_crazy is online now
post #8 of 29 (permalink) Old 09-19-2012, 07:34 AM Thread Starter
Senior Member

Join Date: Aug 2012
Location: New Lenox, IL
Posts: 246
Garage
Default

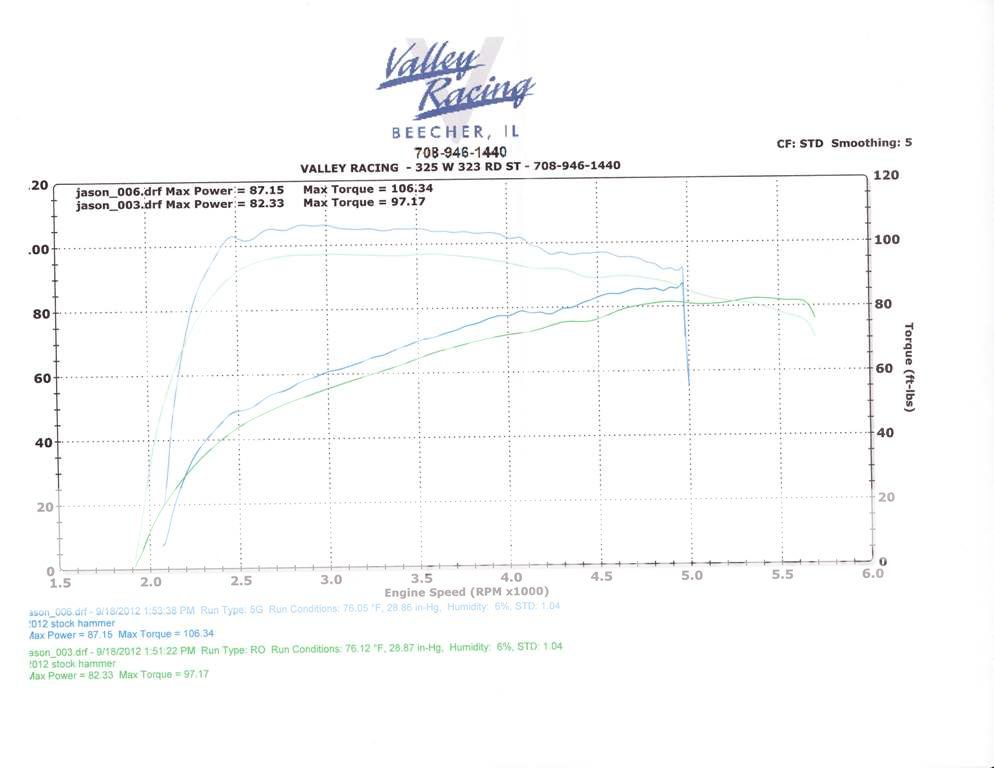

Sorry guys. Here is the graph. The blue line is the 5th gear pull. He also pulled it in 4th because of the 5K rev limit in 5th. I plan to use the same facility to dyno after mods to compare. I 100% agree that every dyno reads different and there are several factors that can change the outcome.



2014 X Country - Havasu Red 109 HP / 112 TQ Dyno Graph

2012 Hammer S 94 HP / 109 TQ (Sold) Dyno Graph
2006 Honda CBR600RR (Sold)
Cosmosgoat is offline
post #9 of 29 (permalink) Old 09-19-2012, 07:38 AM
Senior Member

ndabunka's Avatar

Join Date: Mar 2011
Location: Charlotte, NC
Posts: 1,858
Default

Quote:
Originally Posted by Rebel Biker View Post
Okay, that all makes sense, though I feel robbed. I guess when HD, Honda and everybody else talks about their HP, it's rated the same way?
HD avoids HP discussions "like the plague" & most HDs make significantly less than the Victory's do in almost EVERY case. I ran my stock '11 Ness XC @ a free dyno day a year ago and most stock Harley's weren't able to get anywhere NEAR the 80's. A few HEAVILY modded HD's got between 80 & 90 and only one bike showed over 90 HP on the DynoJet that was being used that day. My XC got 83.59 HP & 97.92 TQ so I thought that was decent.

However, the cruiser bikes (Hammer, Jackpot & Judge) also use a different CAM which is suppose to provide a bit more power than the baggers so I would have expected the OP's Hammer to have put up a bit higher numbers than mine but maybe he ran a different SAE or some other difference?

Nevermind - It looks like he did have a run with the higher 87/106 figures so it looks more "in-line" now.




It's not just any victory.... It's MY Victory!

2011 Victory Ness Cross Country #120
Ness Thunderheaders
Ness Knurled Highway Pegs/KwelMetal Brackets
Ness Radius laydown license
Chrome CAM Tension Covers
Red Engine Bolts
Madstad System
DIY Garage Door Opener
Victory Chrome Saddle Bag Lid Rails
Küryakyn Upper Fork Shrouds
Küryakyn Lower Fork Covers
Power Commander V Tuner
Power Commander AT-300
Hertz HCX 165s Speakers
JL Audio HX280/4 Bridged 140w

Last edited by ndabunka; 09-19-2012 at 07:43 AM. Reason: cross posted with the OPs graph
ndabunka is offline
post #10 of 29 (permalink) Old 09-19-2012, 07:49 AM Thread Starter
Senior Member

Join Date: Aug 2012
Location: New Lenox, IL
Posts: 246
Garage
Default

HD dealers also wont touch a Victory either in my experience. I asked several if they would simply do a few baseline pulls and they said no way. I even offered up the option to make fun if my Hammer made less than an HD would. Still no way. Anyway the place i went, Valley Racing in Beecher, IL, was good to deal with and will be going back. Not a real flashy place but they did what i asked at a reasonable price and were professional about it.

2014 X Country - Havasu Red 109 HP / 112 TQ Dyno Graph

2012 Hammer S 94 HP / 109 TQ (Sold) Dyno Graph
2006 Honda CBR600RR (Sold)
Cosmosgoat is offline
