Default How to wire passing lamps

I've been searching for an example of how to connect a set of driving/passing lamps to the wiring in the headlight bucket.

Can anyone point me to the right place? I have a set of lamps that have 2 wires each, power and ground. I'd like to minimize the wire length and power them from the headlight bucket.

2008 Kingpin Tour

2013 Victory Vision in black
2008 Victory Kingpin Tour - traded
2000 Yamaha VStar 650 - traded
Cruising the coulees in God's Country (Western WI)
ljurgens is offline
Sponsored Links
Advertisement

post #2 of 11 (permalink) Old 05-13-2013, 07:55 AM
Senior Member

NJ8BALL's Avatar

Join Date: Aug 2011
Location: NJ
Posts: 931
Garage
Default

If I'm not mistaken, i either wired the power the low beam, or to a switch with a relay from the battery on my old bike.

Sent from Motorcycle.com Free App

'09 Kingpin 8-Ball...Sanded chrome exhaust, Stage 1 slipons, VFCIII, Lloyds IAV, Stonny's 27" sissybar, Edge bags with ghost brackets,Kuryakyn black ISO grips,

http://www.bluebeardimagery.com/
http://blue-beard-imagery.artistwebsites.com/
Photo equip: Canon 60D, Canon 55-250is, Canon 18-55, Canon 70-200f4,Tamron SP10-24
NJ8BALL is offline
post #3 of 11 (permalink) Old 05-20-2013, 09:49 PM
Member

Join Date: Apr 2010
Posts: 33
Smile running lights

I just wired a set of leds on my cc and called my dealer about any suggestions, he led me to a yellow wire with a pink tracer that I got to throw the headlight bucket. used as a power feed to my switch. works great.
popalaris.1 is offline
Sponsored Links
Advertisement

post #4 of 11 (permalink) Old 05-21-2013, 07:51 AM Thread Starter
Senior Member

Join Date: Mar 2012
Location: West Salem, WI
Posts: 182
Garage
Default

Thanks popalaris.1, I'll look for that in my bucket! I've got the lights mounted, I had some chrome brackets, and I bolted them to the top bolt of my lowers on the fork. Hopefully they are far enough away from the headlight to make a nice triangle of light.

2013 Victory Vision in black
2008 Victory Kingpin Tour - traded
2000 Yamaha VStar 650 - traded
Cruising the coulees in God's Country (Western WI)
ljurgens is offline
post #5 of 11 (permalink) Old 05-21-2013, 08:27 AM
Lifetime Premium

gibson's Avatar

Join Date: Jan 2012
Location: North east Indiana
Posts: 1,181
Default

ax.jpg this is how it should be done with it's own power fused. 86 goes to the power on the low beam power side to turn on the relay. The lights that you add should be fused and have it's own power. If you wire it to the low beam you will pop a fuse.

2012 Fireball Jackpot
gibson is offline
post #6 of 11 (permalink) Old 05-21-2013, 09:37 AM Thread Starter
Senior Member

Join Date: Mar 2012
Location: West Salem, WI
Posts: 182
Garage
Default

Thanks Gibson!
Does 86 go to low-beam power regardless of fog vs driving lights?
I was thinking I would like to have a switch, just in case I want to turn them off manually.

It is interesting how many different diagrams you can find online regarding relays.


2013 Victory Vision in black
2008 Victory Kingpin Tour - traded
2000 Yamaha VStar 650 - traded
Cruising the coulees in God's Country (Western WI)
ljurgens is offline
post #7 of 11 (permalink) Old 05-27-2013, 01:47 PM Thread Starter
Senior Member

Join Date: Mar 2012
Location: West Salem, WI
Posts: 182
Garage
Default Mounted pictures

Finally got them mounted and wired.

I opened up the headlight bucket and found what looks like a headlight connector. Tested for power etc and found that it was hot when the ignition was on, and off when it was off and also off when high beams were on! So I just used that connector for my ground and power, adding a 15amp fuse on the power side. Nice and neat, fits right in next to my garage door opener.

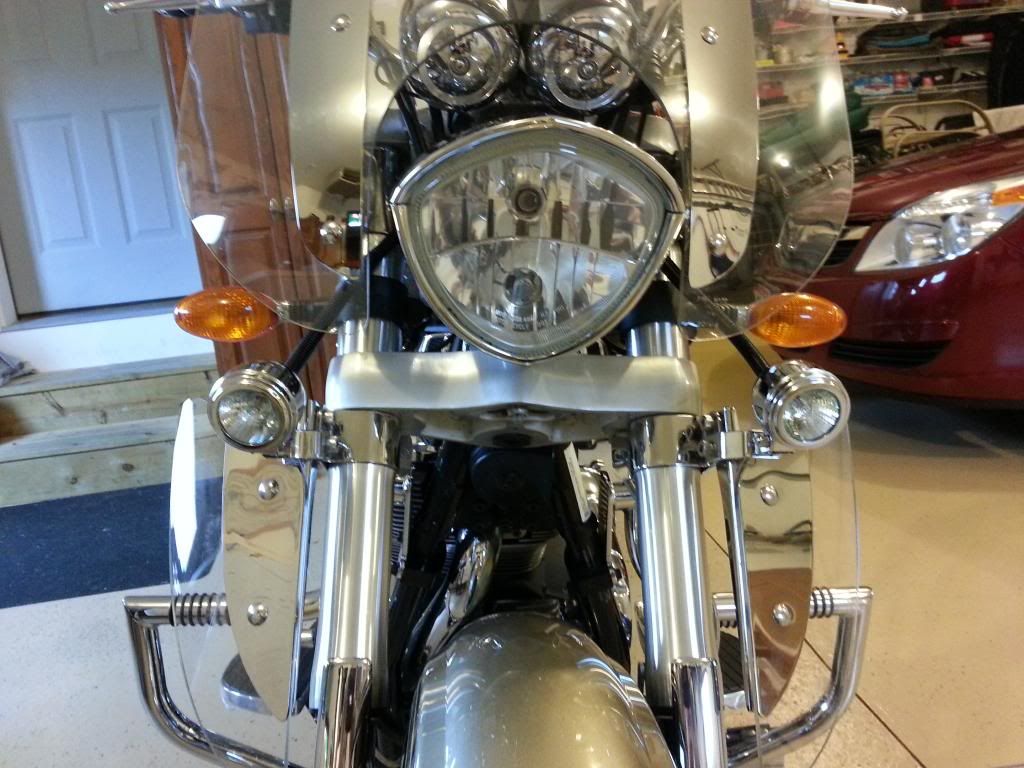

Lights off, pointed the right side light a bit off to the right to illuminate the side of the road better:

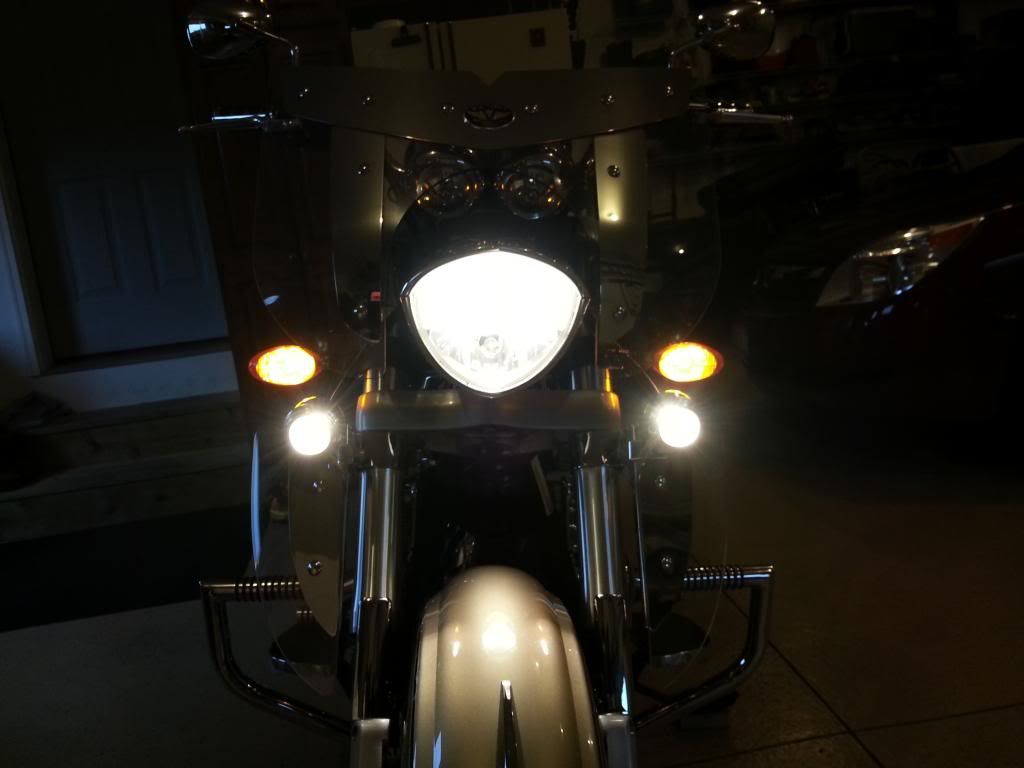

Lights on, I had to move my blinkers up a bit to get out of the glow of the lights:

2013 Victory Vision in black
2008 Victory Kingpin Tour - traded
2000 Yamaha VStar 650 - traded
Cruising the coulees in God's Country (Western WI)
ljurgens is offline
post #8 of 11 (permalink) Old 04-08-2016, 03:01 PM
Member

Join Date: Jun 2011
Posts: 31
Default

Quote:
Originally Posted by ljurgens View Post
Finally got them mounted and wired.

I opened up the headlight bucket and found what looks like a headlight connector. Tested for power etc and found that it was hot when the ignition was on, and off when it was off and also off when high beams were on! So I just used that connector for my ground and power, adding a 15amp fuse on the power side. Nice and neat, fits right in next to my garage door opener.

Lights off, pointed the right side light a bit off to the right to illuminate the side of the road better:


Lights on, I had to move my blinkers up a bit to get out of the glow of the lights:
I love the lower wind deflectors you have there, would look great on my Kingpin too - where did you get them from?

Scott

2010 Kingpin - Midnight Cherry/Mustang Solo Seat, D&D Pipes, Victory Tach, Avon Grips, Saddlebags, Lloydz ATS
"Ride to Live"
skooter is offline
post #9 of 11 (permalink) Old 04-08-2016, 06:37 PM Thread Starter
Senior Member

Join Date: Mar 2012
Location: West Salem, WI
Posts: 182
Garage
Default

They came on the bike, I think they were from Victory. Sorry!

2013 Victory Vision in black
2008 Victory Kingpin Tour - traded
2000 Yamaha VStar 650 - traded
Cruising the coulees in God's Country (Western WI)
ljurgens is offline
post #10 of 11 (permalink) Old 04-09-2016, 05:54 AM
Senior Member

SilvrT's Avatar

Join Date: Aug 2012
Location: Surrey, BC Canada
Posts: 1,365
Garage
Default

Quote:
Originally Posted by ljurgens View Post
Thanks Gibson!
Does 86 go to low-beam power regardless of fog vs driving lights?
I was thinking I would like to have a switch, just in case I want to turn them off manually.

It is interesting how many different diagrams you can find online regarding relays.

It doesn't matter if 85 is ground or 86 is ground. If you want to manually switch them, run the other one (85 or 86) to a switch and wire that to a power source that only comes on when the key is turned on.

2013 RED XCT

Live to Love - Love to Ride
Life's a Venture on my Victory

----------------------------
Lloydz Air Filter
Lloydz Timing Wheel
Power Commander V
Autotune
CATs removed
Stage 1 flash
HD Trunk Rack
FIAAM Air Horn
PIAA 1100x Lamps
D&D Slip-on Mufflers
HID High & Low
KuryAkyn Sabertooth saddlebag tail lights
Victory Apes
Michelin Primacy Alpin PA3 ZP 195/55-16
------------------------------------
