Default covering/removing pin-striping

I bought my XC with custom pin-striping done by the previous owner. For the most part I like the strips but the stars bursts or whatever they are are not growing on me and I've had enough of the comments about having "flowers" on my bike
I'd like to cover the star bursts or best just remove them all together. I thought of having them done over in black. Anyone have any other artsy-fartsy thoughts on what to do with the star bursts?
Any ideas on how to remove the pin strip paint without damaging the factory finish?

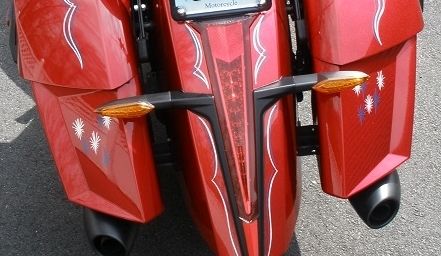

Here's pics of the star bursts:




PaiN's Rides on YouTube

"Living life is a great idea, but riding a motorcycle actually gives you a tool to do it..." -me
2013 Sunset Red Cross Country
Vic Tri-Oval Mufflers, Lloydz VM1-DR cams, AF, PC-V @112hp/113tq
Corbin Dual Tour seat, Klock Werks Klip Hanger bars, Vicwapz
Avon Contour grips, Kuryakyn Kinetic boards and rear SwingWings
Victory black LED headlight and Touring Pack, Madstad 9" windshield
PaiN is offline
Sponsored Links
Advertisement

post #2 of 17 (permalink) Old 05-24-2014, 03:45 PM
Senior Member

Join Date: Mar 2011
Location: Buckeye, Az.
Posts: 1,417
Default Star removeale.

I recently did some pinstriping on my bike. First time playing with this stuff. Went to an autobody paint supply store. They recomment a sign paint. That's what I used,he may not have used that. I cleaned off the area first with a little acidtone. Then I pin striped it. Let it dry a couple of days. Then I went over it with TurtleWax Glass, clear wax/sealer. So after having the pin striping on it for a couple of weeks the paint was dryed pretty good. Some of the striping I did not really care for. I used some acidtone on the pinstriping. Let it soak on the parts for a minute and commenced to rubbing. It came off ,not the easiest , but it did come off. Then I rewaxed the area I had just rubbed the pin stripping off of . It is worth trying a little acidtone and elbow grease if it works, it was cheap to remove from the bike. If the guy used some other paint and had it clear coated on top of that good luck getting it off.

Buckeye, Arizona(USA) 2011 Victory Cross Roads, Black police bag guards, black engine guards, black handle bars, Triumph Tiger mirrors, Triumph hand grips, set speedo/tach back 5" , adjustable timing wheel, Lloyzz Fuel Programmer III & air filter. Modified exhaust, made stock into 2 into 1. MRA windshield, Rotated front fender forward,relocated ignition switch, Bad Ace Fuel Tank Risers, Fat front tire.
Speedblue is offline
post #3 of 17 (permalink) Old 05-24-2014, 04:01 PM
Senior Member

DirtyDan's Avatar

Join Date: Aug 2013
Location: San Tan Valley, AZ
Posts: 1,501
Default

Acetone will work. If you don't have any around just head to the kitchen and grab the easy off. Works well too. Just mask off what you wanna keep. I highly doubt it was cleared over.

2012 Cross Country Champion Trike in process with all the usual mods
2010 cross country, engine change out in process
All sold
2012 XCT,
03/07/12 RG Chopped Bagger
1996 Road King Chopped
2003 FLHTCUI
2003 Big Bear Choppers DA
2000 Chopper Guys rigid EVO
1995 FLHTCU w/Hennigan sidecar
1947 Knuckle
1990 FXRS Convt
1986 Honda CX650C
DirtyDan is offline
Sponsored Links
Advertisement

post #4 of 17 (permalink) Old 05-24-2014, 04:50 PM
Lifetime Premium

RedRocker's Avatar

Join Date: Jan 2011
Location: South Eastern, CT
Posts: 1,010
Garage
Post

I had my XC pinned last year at Americade and it wasn't clear coated. I agree, i would not want those flower designs on my ride. What the hell was the original owner thinking?

Dave
USCG Retired

2014 Sonic Blue/Silver XCT
Lloydz VM1-DR Cams/ATS/Air Filter/.25 Turn/PCV/Vic BlkTip Tri-Ovals/Tuned by KMC Powersports: 111/112 CR's H/L HID Kit/Glenda LED's/Hyperlites/Stebel Air Horn/Vic Black Billet Floorboards-Primary&Cam Cover


2011 XC-Traded
RedRocker is offline
post #5 of 17 (permalink) Old 05-24-2014, 05:33 PM
Senior Member

visionjohnny's Avatar

Join Date: Sep 2010
Location: minnesota
Posts: 12,947
Default

acetone will eat the clear
easy off oven spray works good but best to cover all area you do not want it on.
After words go to a detail shop or body shop and have them buff the shine back in

2008 Vision
Mpls, MN.

Please add your state and model of bike you have. Click user CP @ top of page and then far left click edit signature. Thanks
visionjohnny is offline
post #6 of 17 (permalink) Old 05-24-2014, 06:15 PM
Senior Member

CHAINSAW's Avatar

Join Date: Jun 2013
Location: Kansas
Posts: 145
Default

Best way to learn is watch someone else do it first.. lol Easy Off is the way to go.

https://www.youtube.com/watch?v=ZgD9SJ_7Cto
CHAINSAW is offline
post #7 of 17 (permalink) Old 05-25-2014, 05:39 AM Thread Starter
Senior Member

PaiN's Avatar

Join Date: May 2014
Location: CT, USA
Posts: 4,018
Garage
Default

Thank you for the suggestions......
The pin-stripping is not cleared over. I'll grab a can of Easy-Off today and report back as to how it goes.

Double thanks for the the vid, Chainsaw ....If the oven cleaner took care of that job, my little less than a year old star bursts should come off in a snap.

PaiN's Rides on YouTube

"Living life is a great idea, but riding a motorcycle actually gives you a tool to do it..." -me
2013 Sunset Red Cross Country
Vic Tri-Oval Mufflers, Lloydz VM1-DR cams, AF, PC-V @112hp/113tq
Corbin Dual Tour seat, Klock Werks Klip Hanger bars, Vicwapz
Avon Contour grips, Kuryakyn Kinetic boards and rear SwingWings
Victory black LED headlight and Touring Pack, Madstad 9" windshield

Last edited by PaiN; 05-25-2014 at 05:49 AM.
PaiN is offline
post #8 of 17 (permalink) Old 05-25-2014, 09:44 AM
Senior Member

visionjohnny's Avatar

Join Date: Sep 2010
Location: minnesota
Posts: 12,947
Default

EVERY ONE


If you didn't catch it oven cleaner will not work on clear coat.

Don't ever wet sand your bike have a pro do it.

2008 Vision
Mpls, MN.

Please add your state and model of bike you have. Click user CP @ top of page and then far left click edit signature. Thanks
visionjohnny is offline
post #9 of 17 (permalink) Old 05-25-2014, 11:23 AM Thread Starter
Senior Member

PaiN's Avatar

Join Date: May 2014
Location: CT, USA
Posts: 4,018
Garage
Default

It worked perfectly and cleaned up real nice but removing the stripes does take many spray & scrub sessions. I ended up removing all the star bursts and also the tank and fairing pin stripes, just left the fender and bags with them on. The bike is much less busy now with no "flowers"...The things bugged me and now with them off I realize how goofy they actually looked on this bike. I'm very happy with how this turned out.
The previous owner also epoxied something to the clutch cover that fell off and left the glue, I decided to fix that while I was at it(that's the tape/drape seen in the last pic).

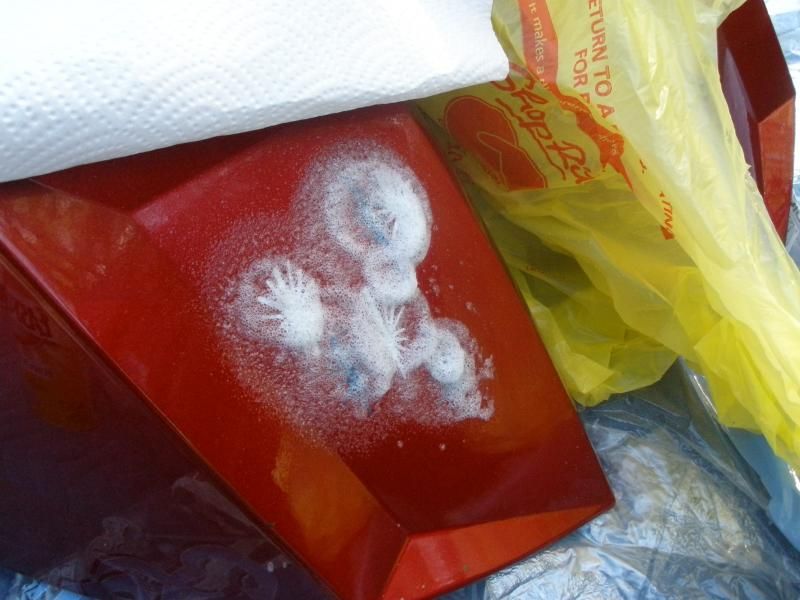

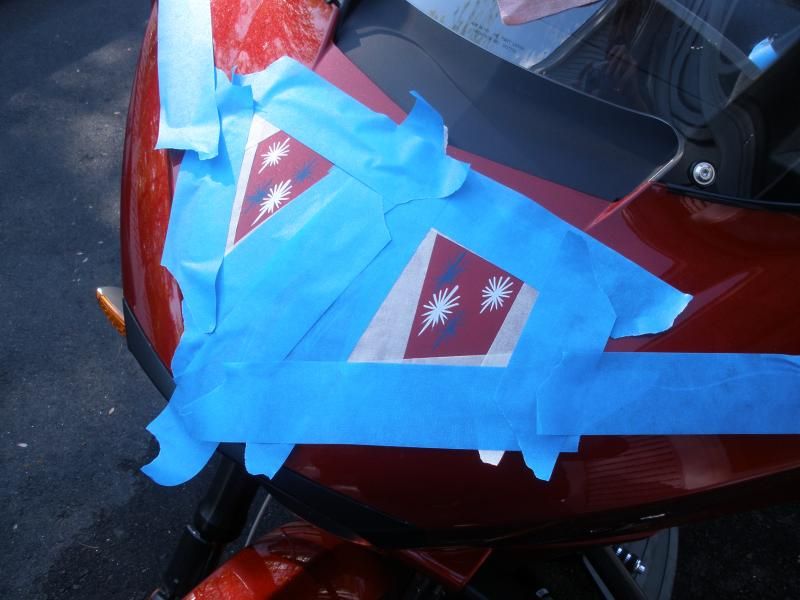

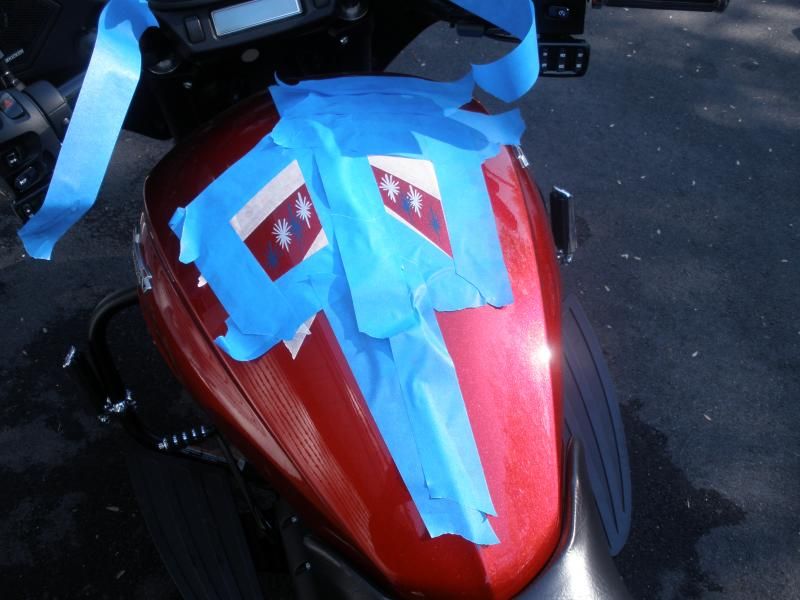

Here's the process









PaiN's Rides on YouTube

"Living life is a great idea, but riding a motorcycle actually gives you a tool to do it..." -me
2013 Sunset Red Cross Country
Vic Tri-Oval Mufflers, Lloydz VM1-DR cams, AF, PC-V @112hp/113tq
Corbin Dual Tour seat, Klock Werks Klip Hanger bars, Vicwapz
Avon Contour grips, Kuryakyn Kinetic boards and rear SwingWings
Victory black LED headlight and Touring Pack, Madstad 9" windshield

Last edited by PaiN; 05-25-2014 at 12:09 PM.
PaiN is offline
post #10 of 17 (permalink) Old 05-25-2014, 11:24 AM Thread Starter
Senior Member

PaiN's Avatar

Join Date: May 2014
Location: CT, USA
Posts: 4,018
Garage
Default

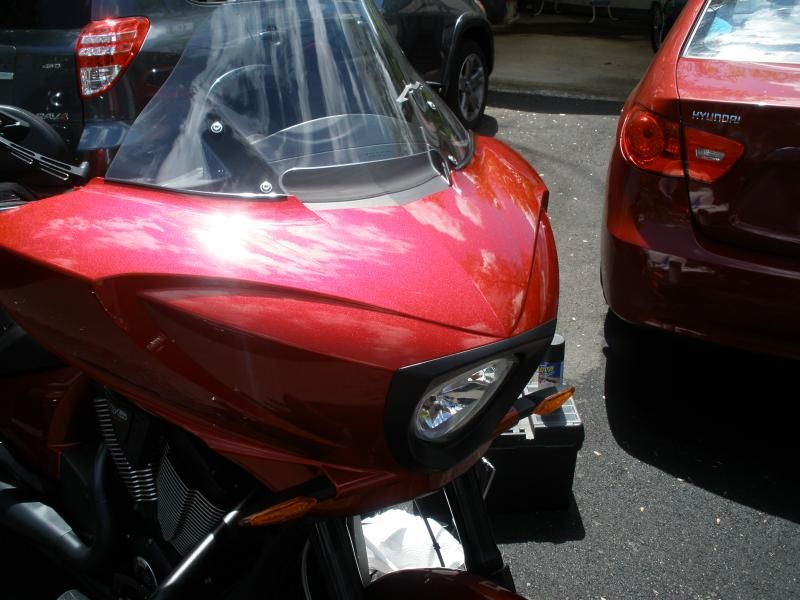

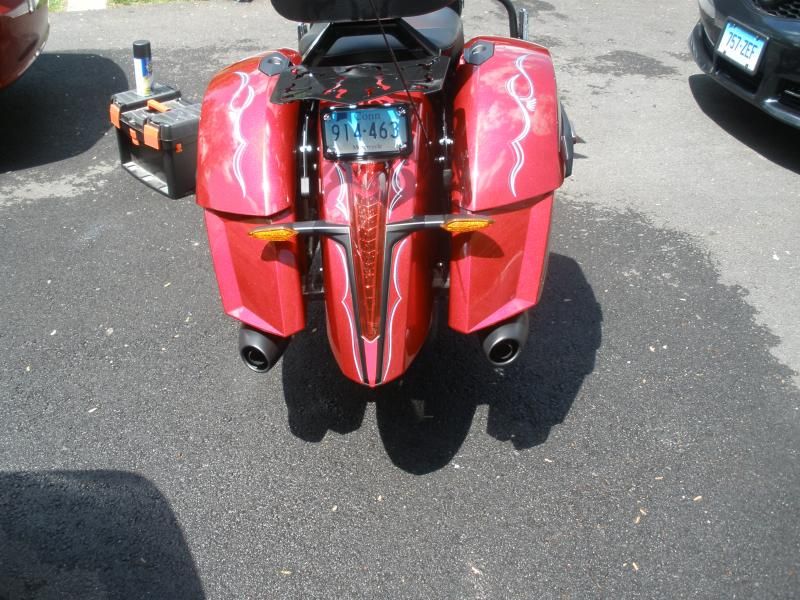

Here it is after a wash & wax




PaiN's Rides on YouTube

"Living life is a great idea, but riding a motorcycle actually gives you a tool to do it..." -me
2013 Sunset Red Cross Country
Vic Tri-Oval Mufflers, Lloydz VM1-DR cams, AF, PC-V @112hp/113tq
Corbin Dual Tour seat, Klock Werks Klip Hanger bars, Vicwapz
Avon Contour grips, Kuryakyn Kinetic boards and rear SwingWings
Victory black LED headlight and Touring Pack, Madstad 9" windshield
