Default 99 V92TC is done...

Well last Saturday I started my conversion of my 99 V92C to a 99 V92TC. Went pretty well for the most par. Disassembled the bike welded a bolt onto the left side frame to support the exhaust bracket. Bolted all of the brackets on and battery box and such. Mounted the swing arm and ran into my first problem. I did not get a different shock, the one I have is way to short. Oh well one is on order now. Used it temporarily. Now started installing the exhaust, wow, how do you get the rear elbow to work with the rest of the head pipe? I was so tired I gave up. Installed the fender and mufflers and bags. Plan to finish it up this weekend. Below are some pics.

The begening.


Part of the way there.


All tore up


Getting there


Low Rider. (need different shock)

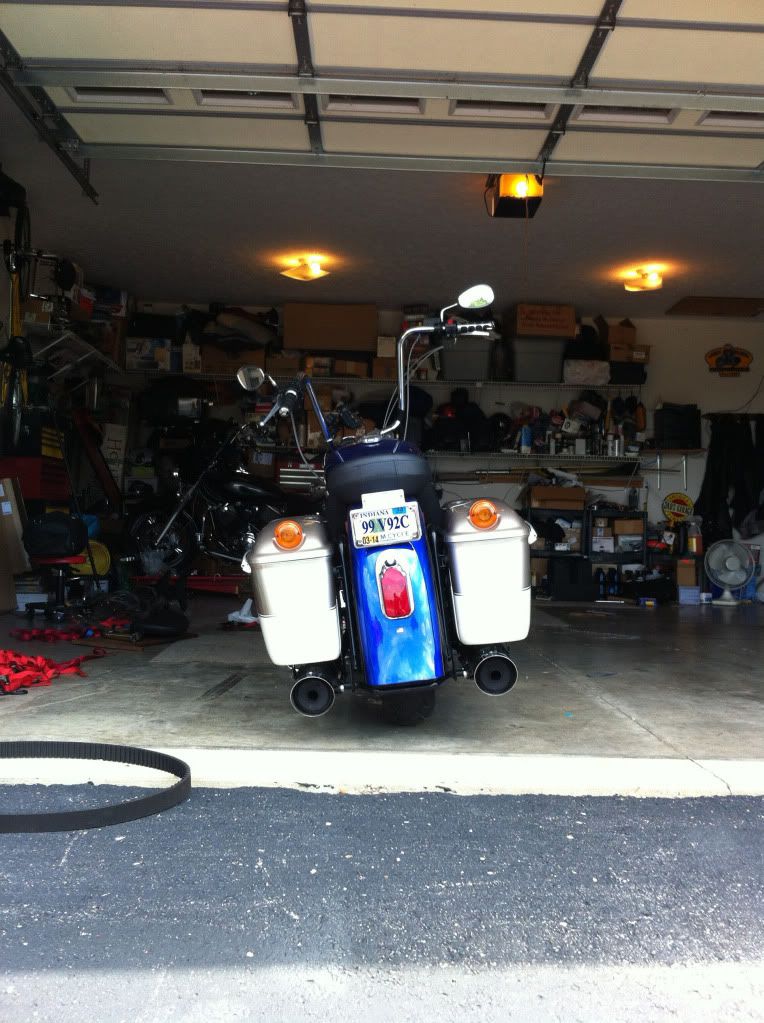

Bags need some paint now.

2011 Cross Country
PCV with Vic filter
Witchdoctors Muscle Mufflers
Painted inner fairing
Magnum 21" Wheel and Fender
Custom mounted CVO Tour Pak
Vicbaggers Bars, speaker grills,
and bezels

Last edited by Atbyrne; 03-27-2013 at 03:49 PM.
Atbyrne is offline
Sponsored Links
Advertisement

post #2 of 56 (permalink) Old 07-31-2012, 05:33 PM
Senior Member

saintdruss13's Avatar

Join Date: May 2012
Location: Earth
Posts: 236
Garage
Default

Dam man thats a cool project, I think it looks great.

Captain Spalding's Fried chicken and gasoline. * EXIT 13 OFF ROUT 1 at RUGGSVILLE*

2004 TC, 05 Vegas 8Ball, 09 Yamaha FZ6R
Lake Havasu City AZ.
saintdruss13 is offline
post #3 of 56 (permalink) Old 07-31-2012, 05:48 PM Thread Starter
Senior Member

Atbyrne's Avatar

Join Date: Sep 2011
Location: corydon, in
Posts: 812
Garage
Default

Thanks, I have lots more to go. I hope it all goes well. Now if I can just figure out this exhaust elbow.

2011 Cross Country
PCV with Vic filter
Witchdoctors Muscle Mufflers
Painted inner fairing
Magnum 21" Wheel and Fender
Custom mounted CVO Tour Pak
Vicbaggers Bars, speaker grills,
and bezels
Atbyrne is offline
Sponsored Links
Advertisement

post #4 of 56 (permalink) Old 07-31-2012, 10:22 PM
Senior Member

Tims_04V92TC's Avatar

Join Date: Oct 2011
Location: Chesapeake Va
Posts: 1,499
Garage
Default

I cant quite see from the last pic but are you still having probs with the rear jug exhaust tube? If your still struggling with it, I can look up in my manual when I get home but I believe you remove crossover/mufflers, loosen front of exhaust and you should be albe to mate it up by swinging your exhaust out away from the bike. Once its is in, you should be in a position to get it onto the jug and bolt up the flange. I just about had mine off while replacing my front pully but was able to access everything while it was loosend.

Sidebar question. Did you retorque your front drive pulley nut while you got everything disassembled?? Every 10K on your bike and it can jump up and bite ya if you over look it. Ounce of prevention worth a pound of cure while you got it down for mod. Hope this helps...

Looks good!!!

Tim

2011 White Vision - Nuvi 550, Lowers, Lloydz 2nd filter, Vic perf filter, CB/Icom, 96 Brake LED's, Clear Signal lens/Switchbacks, VIC Hwy Pegs, Stebel Horn, 7Jurock 15" Shield, PCV, Lloyd ATS and Variable intake, Ness honkers

2004 V92 TC - S1 flash, level 1 slip-on, Ness big sucker K&N, ISO Grips, 4x1.5 Highway Hawg Risers, extra chrome (never too much), JM 2k CB 4' antena, Mustang seat, HD Front TS & Lowers, OD Pulley

IBA Rider
Retired Navy SCPO
Chesapeake Va
Tims_04V92TC is offline
post #5 of 56 (permalink) Old 08-01-2012, 06:45 AM Thread Starter
Senior Member

Atbyrne's Avatar

Join Date: Sep 2011
Location: corydon, in
Posts: 812
Garage
Default

Quote:
Originally Posted by Tims_04V92TC View Post
I cant quite see from the last pic but are you still having probs with the rear jug exhaust tube? If your still struggling with it, I can look up in my manual when I get home but I believe you remove crossover/mufflers, loosen front of exhaust and you should be albe to mate it up by swinging your exhaust out away from the bike. Once its is in, you should be in a position to get it onto the jug and bolt up the flange. I just about had mine off while replacing my front pully but was able to access everything while it was loosend.

Sidebar question. Did you retorque your front drive pulley nut while you got everything disassembled?? Every 10K on your bike and it can jump up and bite ya if you over look it. Ounce of prevention worth a pound of cure while you got it down for mod. Hope this helps...

Looks good!!!

Tim
Any help would be great.

I am still having trouble for sure with that piece. I know it has to be something simple I am missing for sure. If you can look it up or even email me a picture of it that would be great. No I did not re-torque it yet, because I am not sure of the torque on it. I donít have the chrome piece tight either. All of it is lose put together to take pictures and to have a place to store it. LOL. Plan to start back on it this weekend. Should have new shock in on Thursday. I really appreciate any help you can give me. I also am hoping to get the correct wires on the battery. Had them taped together but came lose somehow. From the lengths I am 90% sure which ones go where too. I know the obvious ones for sure, but the little ones scare me a little. I have been trying to find service manuals for the 99 and a 2002, cause that is what all of the TC parts are from.

Travis

Thanks for any help.

2011 Cross Country
PCV with Vic filter
Witchdoctors Muscle Mufflers
Painted inner fairing
Magnum 21" Wheel and Fender
Custom mounted CVO Tour Pak
Vicbaggers Bars, speaker grills,
and bezels
Atbyrne is offline
post #6 of 56 (permalink) Old 08-01-2012, 01:58 PM
Senior Member

Tims_04V92TC's Avatar

Join Date: Oct 2011
Location: Chesapeake Va
Posts: 1,499
Garage
Default

Well reading my manual, remove everything up to crossover, loosen remaining clamps, loosen front and remove front flange bolts then rear removing front to back. Believe it or not, thats all it says.

Torque values for your drive pulley nut should be in the owners manual which I think you can download from vic web.

Mine are Drive pulley 125 foot pounds, 2 retaining screws on nut are 85 foot pounds. Took a 1 7/8 socket and use red loctite.

Electrical, don't have anything for you on that one bro... Keep us posted...

Tim

2011 White Vision - Nuvi 550, Lowers, Lloydz 2nd filter, Vic perf filter, CB/Icom, 96 Brake LED's, Clear Signal lens/Switchbacks, VIC Hwy Pegs, Stebel Horn, 7Jurock 15" Shield, PCV, Lloyd ATS and Variable intake, Ness honkers

2004 V92 TC - S1 flash, level 1 slip-on, Ness big sucker K&N, ISO Grips, 4x1.5 Highway Hawg Risers, extra chrome (never too much), JM 2k CB 4' antena, Mustang seat, HD Front TS & Lowers, OD Pulley

IBA Rider
Retired Navy SCPO
Chesapeake Va
Tims_04V92TC is offline
post #7 of 56 (permalink) Old 08-01-2012, 03:11 PM Thread Starter
Senior Member

Atbyrne's Avatar

Join Date: Sep 2011
Location: corydon, in
Posts: 812
Garage
Default

Quote:
Originally Posted by Tims_04V92TC View Post
Well reading my manual, remove everything up to crossover, loosen remaining clamps, loosen front and remove front flange bolts then rear removing front to back. Believe it or not, thats all it says.

Torque values for your drive pulley nut should be in the owners manual which I think you can download from vic web.

Mine are Drive pulley 125 foot pounds, 2 retaining screws on nut are 85 foot pounds. Took a 1 7/8 socket and use red loctite.

Electrical, don't have anything for you on that one bro... Keep us posted...

Tim
Did you say flange bolts? Does your engine have bolts that hold on the exhaust or does it have studs from heads with bolts? I have studs and nuts.

2011 Cross Country
PCV with Vic filter
Witchdoctors Muscle Mufflers
Painted inner fairing
Magnum 21" Wheel and Fender
Custom mounted CVO Tour Pak
Vicbaggers Bars, speaker grills,
and bezels
Atbyrne is offline
post #8 of 56 (permalink) Old 08-01-2012, 07:41 PM
Member

Join Date: Jul 2012
Location: Northern Maine
Posts: 58
Default

Sweet project man..did you put your apes on yourself? I'm wanting to put a set on my 92sc where did you get your cables wiring harness etc.

2000 V92sc
Northern Maine
Past bikes
82 Goldwing Interstate 1100
90 GSX 750
87 700 Shadow
82 CB 750 Custom
80 GS 750 EX (wish I still had that old bruiser)
78 GS 850L (First street bike I ever got on at the tender age og 16)
Woodswagon1 is offline
post #9 of 56 (permalink) Old 08-02-2012, 06:35 AM Thread Starter
Senior Member

Atbyrne's Avatar

Join Date: Sep 2011
Location: corydon, in
Posts: 812
Garage
Default

Quote:
Originally Posted by Woodswagon1 View Post
Sweet project man..did you put your apes on yourself? I'm wanting to put a set on my 92sc where did you get your cables wiring harness etc.
Yep I sure did put them on. I have neck and back problems and the bike came with T-bars on it. I extended the wires my self and pulled them through the bars. It was a very interesting process to get them through. There is a lot of wires to these switches. It was the first best thing I have ever done, 2nd will be when I get done bagging it out. I have Barnett cables on it. I have dealt with a guy from New Mexico for years on my VStar so I asked him if he could get them for me. His name is Tim Bondurant aka Metric Magic. I ordered them early this year so he may still know the part numbers of them. His contact information is on his website: http://www.metric-magic.com/. these are 1.25" 16" Apes for a Harley. I used a Harley clamp as well. If you have any other questions, please feel free to ask.

2011 Cross Country
PCV with Vic filter
Witchdoctors Muscle Mufflers
Painted inner fairing
Magnum 21" Wheel and Fender
Custom mounted CVO Tour Pak
Vicbaggers Bars, speaker grills,
and bezels
Atbyrne is offline
post #10 of 56 (permalink) Old 08-03-2012, 07:00 AM Thread Starter
Senior Member

Atbyrne's Avatar

Join Date: Sep 2011
Location: corydon, in
Posts: 812
Garage
Default

Got my new to me 05 TC rear shock in yesterday. I hope to put it on tonight or tomorrow. I hope I can install the exhaust with help from Tim. Will post how it goes. Any tips on getting the shock off easy?

2011 Cross Country
PCV with Vic filter
Witchdoctors Muscle Mufflers
Painted inner fairing
Magnum 21" Wheel and Fender
Custom mounted CVO Tour Pak
Vicbaggers Bars, speaker grills,
and bezels
