Default TPS - I maybe anal but....

Crusing at 67-70 mph, I felt a very slight surge, thought it could be the wind but was curious so I poped the plug from the ECM and checked pins 29-8: 3036 -1372 ohms; 29-14: 1409-3080; 8-14: 2174. Looks good except pins 8-14: should be 3-5K.
also the closed reading would change if I rolled the throttle closed or let it snap closed. Your thoughts on any of this?
I was thinking: (here comes the anal part) If I mark the throttle position in degree's, are the ohms uniform through out the throttle range?
example: Ave ohms to WOT is 1667 / 47 degree's to WOT = 35 ohms per degree. I can mark the throttle position were I feel the surge and check it out.
Thanks

03V92C Vernon, CT
RBugman is offline
Sponsored Links
Advertisement

post #2 of 3 (permalink) Old 05-17-2015, 07:25 AM
Senior Member

ByteN2it's Avatar

Join Date: Jan 2013
Location: Beer Collins, CO
Posts: 361
Default

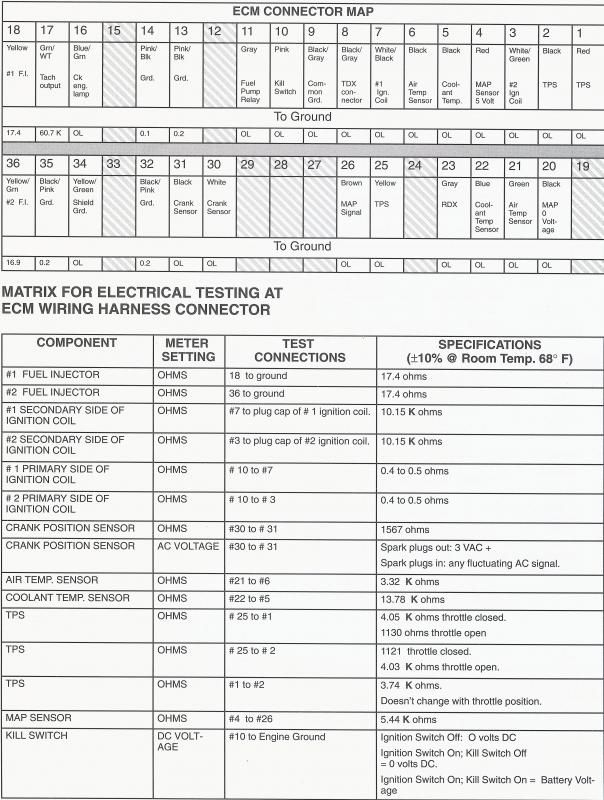

The pins your checking don't match my 99's ECM map. What I've experienced with a bad TPS was the engine cutting out for fractions of a second while cruising right around 3000 RPMs-no surging. I have no idea if the TPS/potentiometer's output is tapered-it's not an expensive part at any auto store & easy to replace on a 99.

ByteN2it is offline
post #3 of 3 (permalink) Old 05-17-2015, 11:23 AM
Senior Member

visionjohnny's Avatar

Join Date: Sep 2010
Location: minnesota
Posts: 12,946
Default

when was the last time you cleaned the throttle body. Have you looked for cracked rubber plugs and vacuum lines. What about your TPS
have you put a 10mm wrench on your battery bolts to see if there tight. No checking with your hand will not do

2008 Vision
Mpls, MN.

Please add your state and model of bike you have. Click user CP @ top of page and then far left click edit signature. Thanks
visionjohnny is offline
